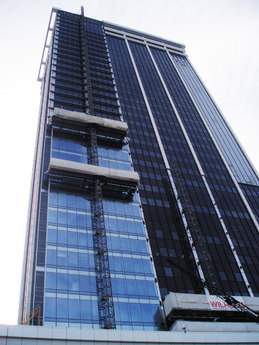

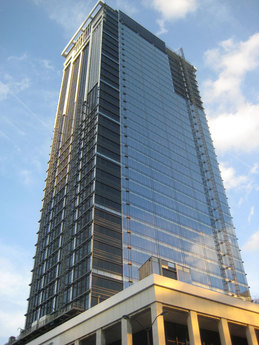

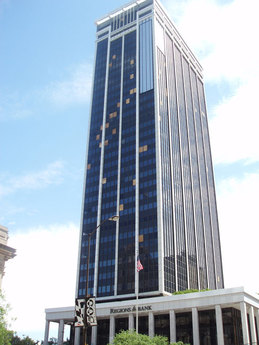

One Indiana Square in Indianapolis. Courtesy Gensler (left).

  • COMPLETION DATE
    2009

Overview

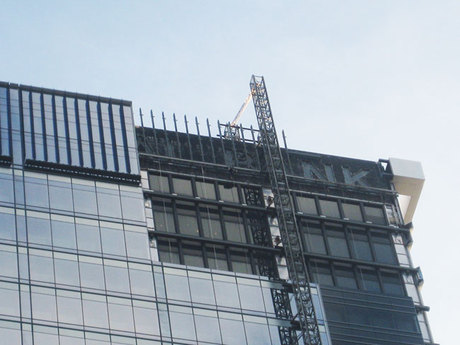

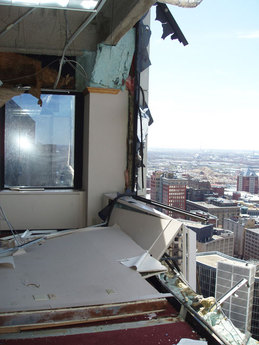

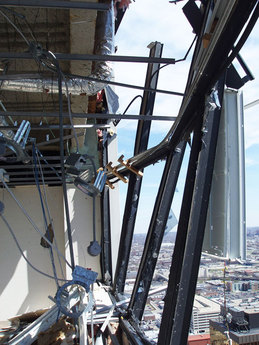

Thornton Tomasetti provided emergency response and stabilization services for a 36-story 1960s, building located in downtown Indianapolis that experienced extensive façade damage as a result of severe weather conditions in April 2006.

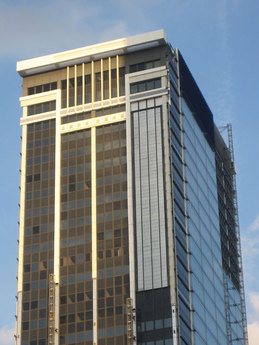

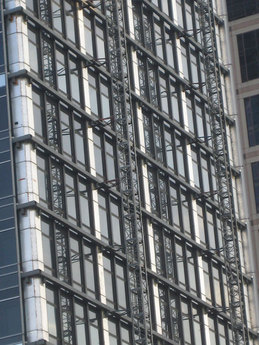

Thornton Tomasetti was contacted to assist in stabilizing the building, evaluating the extent of the damage, and performing interim repairs. Subsequent to the response and stabilization phase, Thornton Tomasetti was retained to provide engineering design and consulting services for the superstructure and curtain wall elements associated with the new curtain wall overclad scheme.

The fast-track, design-build effort involved 3D analysis of the building’s superstructure and foundations, wind tunnel testing for structural and curtain wall loads, the use of Revit to generate the construction documents, and consideration of a liquid tuned-mass damper or other damping systems.
