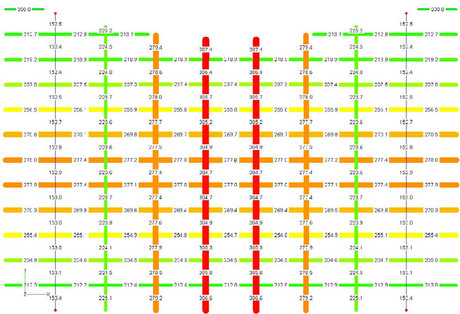

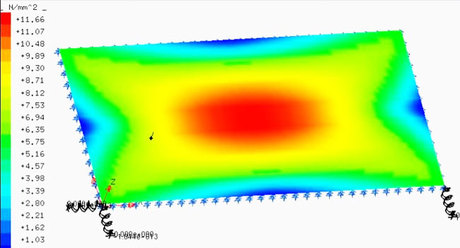

Thornton Tomasetti is assisting KPF Architects in the structural and façade engineering of its steel-glass design for a transparent roof and two-way cable-net glass walls that span between two buildings in Shanghai, China. We are performing third-order, nonlinear finite-element calculations to determine cable forces and deflections under wind loads. The diagram depicts third-order pre-stressed cable forces acting on a glazed façade under maximum wind loading.

Read More

Related Projects

Façade Materials & Systems

Cables

Unsurpassed for transparency, tensegrity systems and cable-net façade structures can efficiently enclose long-span openings without the use of heavy, rigid trusses or frames. We use leading-edge software to design glass façades and roofs with minimal structure. Our extensive experience with form-finding for complex geometries, along with our practical knowledge of cable engineering and construction, places us at the forefront of this design trend.

Façade Materials & Systems

Glazing & Structural Glass

Glazing offers transparency that enhances a façade’s aesthetics and experience from both the interior and exterior. It provides light and a visual connection between the inside and outside. But designing with glass requires the deliberate balancing of light transmittance and the effects it has on energy performance and occupant comfort. Glazing design also requires careful consideration of material strength and safety. We provide a full range of design and engineering support for glazing and glass structures, from structural analyses to recommendations for aesthetics and energy performance. Our expertise in glazed-façade and structural-glass construction includes unitized aluminum frames, stick-built metal frames, steel cable supports, structural glass fin supports and glass stairs and balustrades.
