Petronas Twin Towers

Highlights

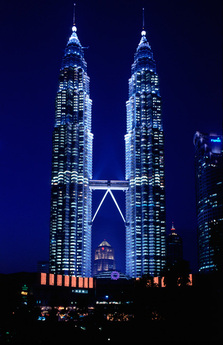

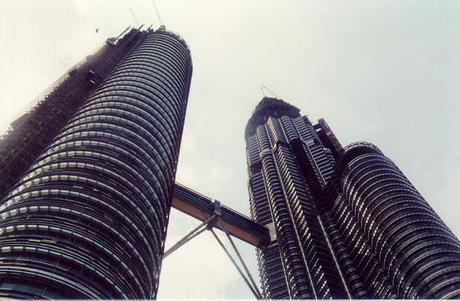

• We engineered the sky bridge with slender structural members rather than heavy trusses to be compatible with the building’s architecture.
• The preassembled bridge was lifted into place and joined to each tower more than 150 meters above street level.

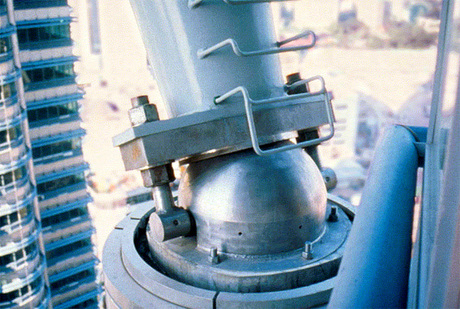

• A pair of steel tubes support the 58-meter sky bridge. The tubes connect to rotating bearings on the 29th floor of each building to allow for independent tower movements caused by wind loads.

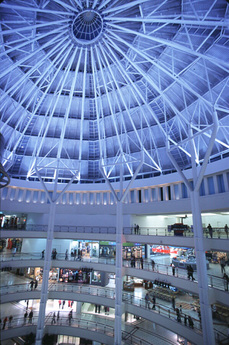

• The complex also includes a seven-story retail facility, an acoustically isolated 864-seat concert hall and a 5,143-car underground garage. We provided structural design for these components.
• The towers were the tallest buildings in the world until 2004 when it was surpassed by Taipei 101 in Taiwan. Thornton Tomasetti also provided structural design for that supertall tower.
